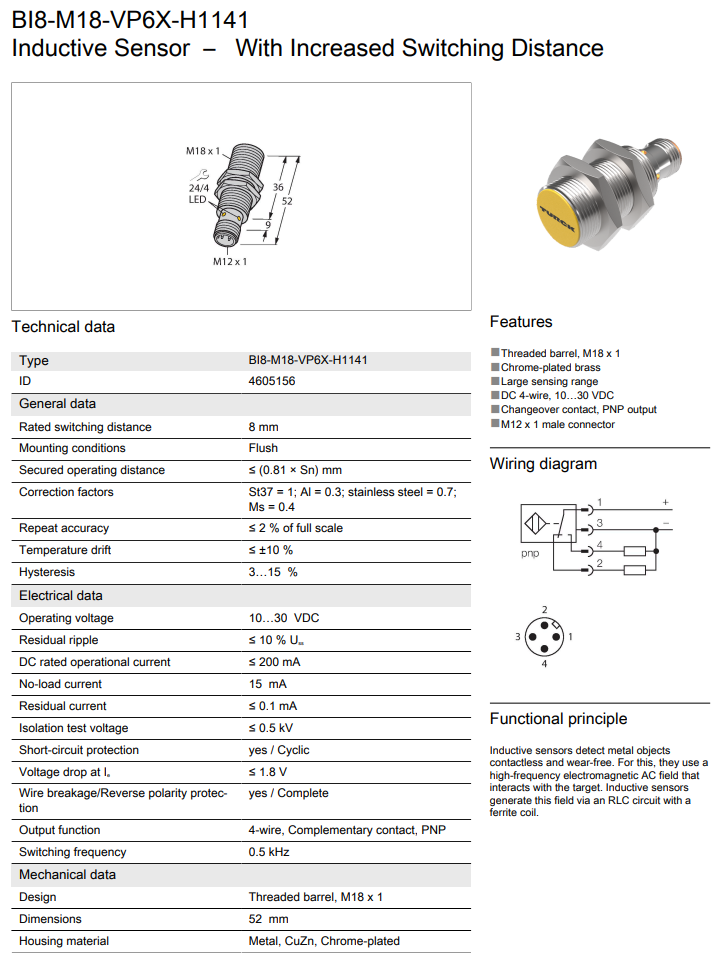

(TURCK)-BI8-M18-VP6X-H1141

BI8-M18-VP6X-H1141(TURCK)

Manufacturer code : 4605156

General data

Rated switching distance : 8 mm

Mounting conditions : Flush

Secured operating distance : ≤ (0.81 × Sn) mm

Correction factors : St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4

Repeat accuracy : ≤ 2 % of full scale

Temperature drift : ≤ ±10 %

Hysteresis : 3…15  %

Electrical data

Operating voltage : 10…30  VDC

Residual ripple : ≤ 10 % Uss

DC rated operational current : ≤ 200 mA

No-load current : 15  mA

Residual current : ≤ 0.1 mA

Isolation test voltage : ≤ 0.5 kV

Short-circuit protection : yes / Cyclic

Voltage drop at Ie : ≤ 1.8 V

Wire breakage/Reverse polarity protection : yes / Complete

Output function : 4-wire, Complementary contact, PNP

Switching frequency : 0.5 kHz

Mechanical data

Design : Threaded barrel, M18 x 1

Dimensions : 52  mm

Housing material : Metal, CuZn, Chrome-plated

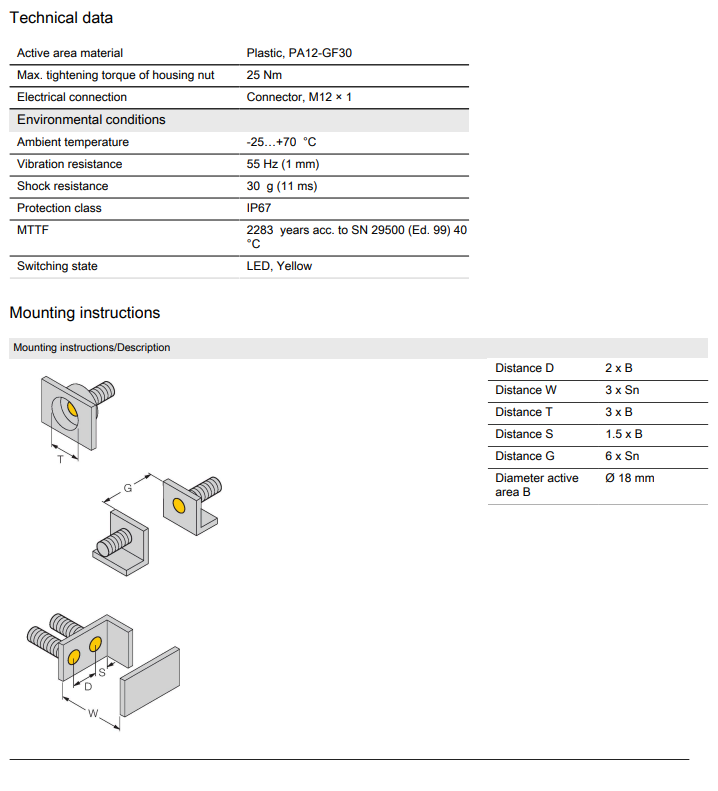

Technical data

Active area material : Plastic, PA12-GF30

Max. tightening torque of housing nut : 25 Nm

Electrical connection : Connector, M12 × 1

Environmental conditions

Ambient temperature  : -25…+70  °C

Vibration resistance : 55 Hz (1 mm)

Shock resistance : 30  g (11 ms)

Protection class : IP67

MTTF : 2283  years acc. to SN 29500 (Ed. 99) 40°C

Switching state : LED, Yellow
data sheet : https://www.turck.de/datasheet/_en/edb_4605156_gbr_en.pdf
