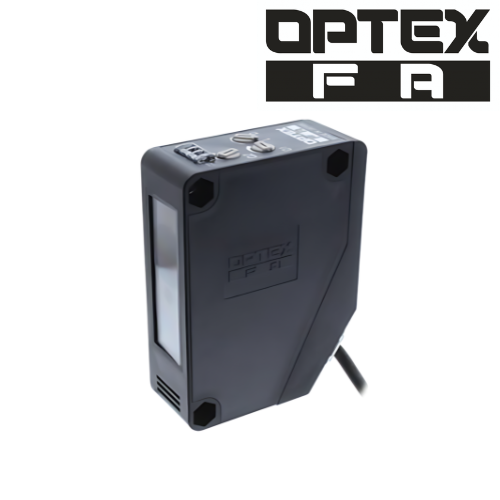

(OPTEX-FA)TOF-3V300P

Series: TOF

Sensing Mode: Background Suppression using Time of Flight (TOF) technology

Sensing Mode Features: Detects both opaque and translucent targets

Sensor Body Type: Compact

Sensor Body Feature: Side screw mounting

Sensor Type: Self-contained

Sensitivity Setting Type: Potentiometer (4-turn)

Display Type: LED indicator

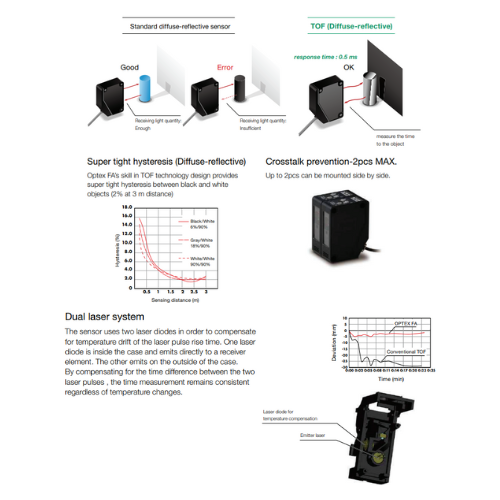

Sensor Features: Long-distance diffuse sensor using TOF technology. Includes two independent PNP outputs, 4-turn potentiometer for adjustments. The sensor has a hysteresis of 6% at distances from 1.5 to 3 meters, with a repeat accuracy of 2mm. Automated cross-talk prevention allows for side-by-side sensor installations.

Laser Beam Spot Size: Ø 12mm at 3 meters

Laser Light Source Details: Red semiconductor laser, Class I FDA certified, 650nm wavelength

Laser Output: 5 mW

Supply Voltage: 12 to 24 VDC

Setting Distance: 3 meters

Control Output: PNP

Output Details: 2 independent PNP outputs

Output Operation Mode: Light-On/Dark-On selectable

Construction: ABS enclosure with a PMMA lens

Temperature Rating: -10º to +50ºC

Protection Rating: IP67 for dust and water protection

Connection Type: Cabled

Connection Detail: 2-meter cableSeries: TOF

Sensing Mode: Background Suppression using Time of Flight (TOF) technology

Sensing Mode Features: Detects both opaque and translucent targets

Sensor Body Type: Compact

Sensor Body Feature: Side screw mounting

Sensor Type: Self-contained

Sensitivity Setting Type: Potentiometer (4-turn)

Display Type: LED indicator

Sensor Features: Long-distance diffuse sensor using TOF technology. Includes two independent PNP outputs, 4-turn potentiometer for adjustments. The sensor has a hysteresis of 6% at distances from 1.5 to 3 meters, with a repeat accuracy of 2mm. Automated cross-talk prevention allows for side-by-side sensor installations.

Laser Beam Spot Size: Ø 12mm at 3 meters

Laser Light Source Details: Red semiconductor laser, Class I FDA certified, 650nm wavelength

Laser Output: 5 mW

Supply Voltage: 12 to 24 VDC

Setting Distance: 3 meters

Control Output: PNP

Output Details: 2 independent PNP outputs

Output Operation Mode: Light-On/Dark-On selectable

Construction: ABS enclosure with a PMMA lens

Temperature Rating: -10º to +50ºC

Protection Rating: IP67 for dust and water protection

Connection Type: Cabled

datasheet: https://drive.google.com/file/d/19eB7OB0Qw6WR6ARB6IIIpJJHtKyp-KF6/view?usp=sharing
