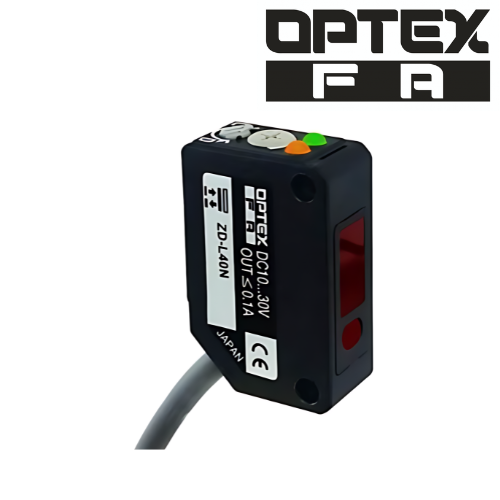

(OPTEX-FA)ZD-L40N

Series: ZL

Sensing Mode: Diffuse

Sensing Mode Features: Capable of detecting opaque and translucent targets

Sensor Body Type: Compact

Sensor Body Feature: Side screw mounting

Sensor Type: Self-contained

Sensitivity Setting Type: Potentiometer

Display Type: LED indicator

Sensor Features: Long-range diffuse style, adjustable up to 400mm. Provides a small 2mm spot size at a 400mm distance and has a high-speed response time of 250µs. Features a 1-turn adjustment potentiometer.

Laser Beam Spot Size: Ø 2mm

Laser Light Source Details: Red semiconductor laser, Class 2 FDA certified, 650nm wavelength

Laser Output: 3 mW

Supply Voltage: 10 to 30 VDC

Setting Distance: 400mm

Control Output: NPN

Output Details: 1 NPN output

Output Operation Mode: Light-On / Dark-On selectable

Construction: ABS enclosure with a PMMA lens

Temperature Rating: -10º to +50ºC

Protection Rating: IP67 for dust and water protection

Connection Type: Cabled

Connection Detail: 2-meter cable

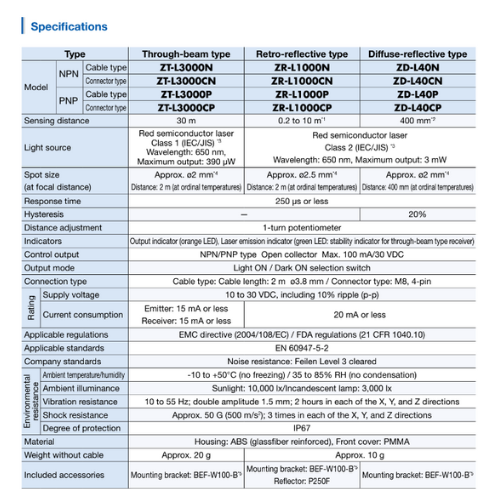

data sheet: https://drive.google.com/file/d/11RcPCOTi1pc4pQlF3LwFIfBkzZcysF4U/view?usp=sharing
