ไฮไลท์

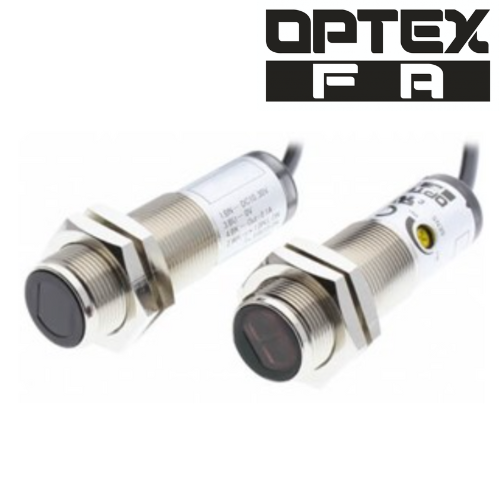

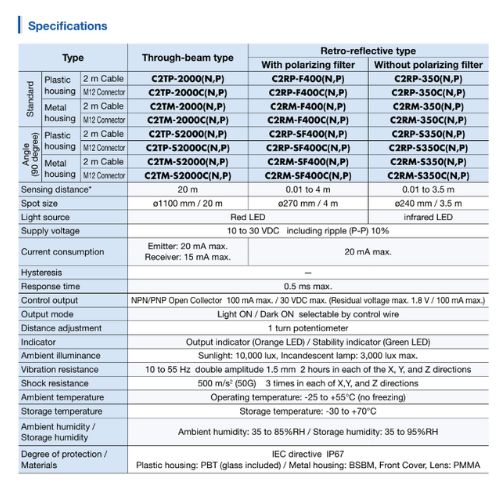

Series: C2

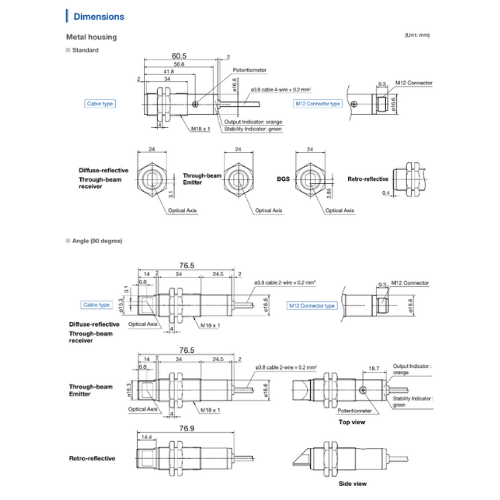

Sensor Body Type: M18 Cylindrical Metal
Sensor Body Feature: OL 60.5mm, with 20µm nickel coating that resists rust
Sensing Mode: Thrubeam
Sensing Mode Details: Designed for long-distance sensing and easy alignment

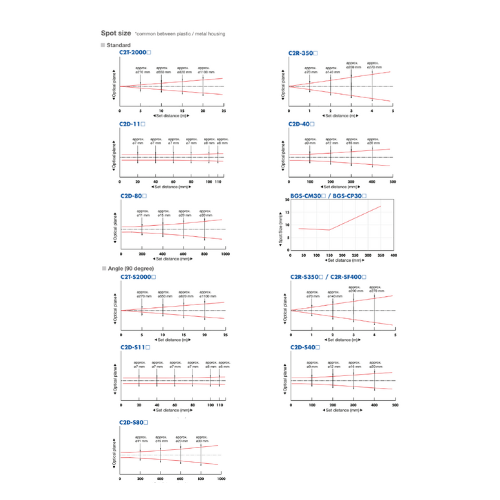

Sensor Features: Includes a 1-turn potentiometer for adjustment, 0.5ms response time, and a Ø1100mm spot size at a 20-meter distance
Light Source: Red LED
Supply Voltage: 10 to 30VDC
Sensing Range: 20 meters
Output: PNP (1 each)
Timer: Not included
Output Mode: Light-On/Dark-On selectable
Construction: Metal housing (BSBM) with a PMMA lens
Temperature Range: Operates in temperatures from -25º to +55ºC
IEC/Nema Rating: IP67 for dust and water protection
Connection: Cable, 2 meters long
datasheet : https://drive.google.com/file/d/1n21OxYq530oOE2BIqcmunO_gSTnPG7lx/view?usp=sharing
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Series: C2
Sensor Body Type: M18 Cylindrical Metal
Sensor Body Feature: OL 60.5mm, with 20µm nickel coating that resists rust
Sensing Mode: Thrubeam
Sensing Mode Details: Designed for long-distance sensing and easy alignment
Sensor Features: Includes a 1-turn potentiometer for adjustment, 0.5ms response time, and a Ø1100mm spot size at a 20-meter distance
Light Source: Red LED
Supply Voltage: 10 to 30VDC
Sensing Range: 20 meters
Output: PNP (1 each)
Timer: Not included
Output Mode: Light-On/Dark-On selectable
Construction: Metal housing (BSBM) with a PMMA lens
Temperature Range: Operates in temperatures from -25º to +55ºC
IEC/Nema Rating: IP67 for dust and water protection
Connection: Cable, 2 meters long
