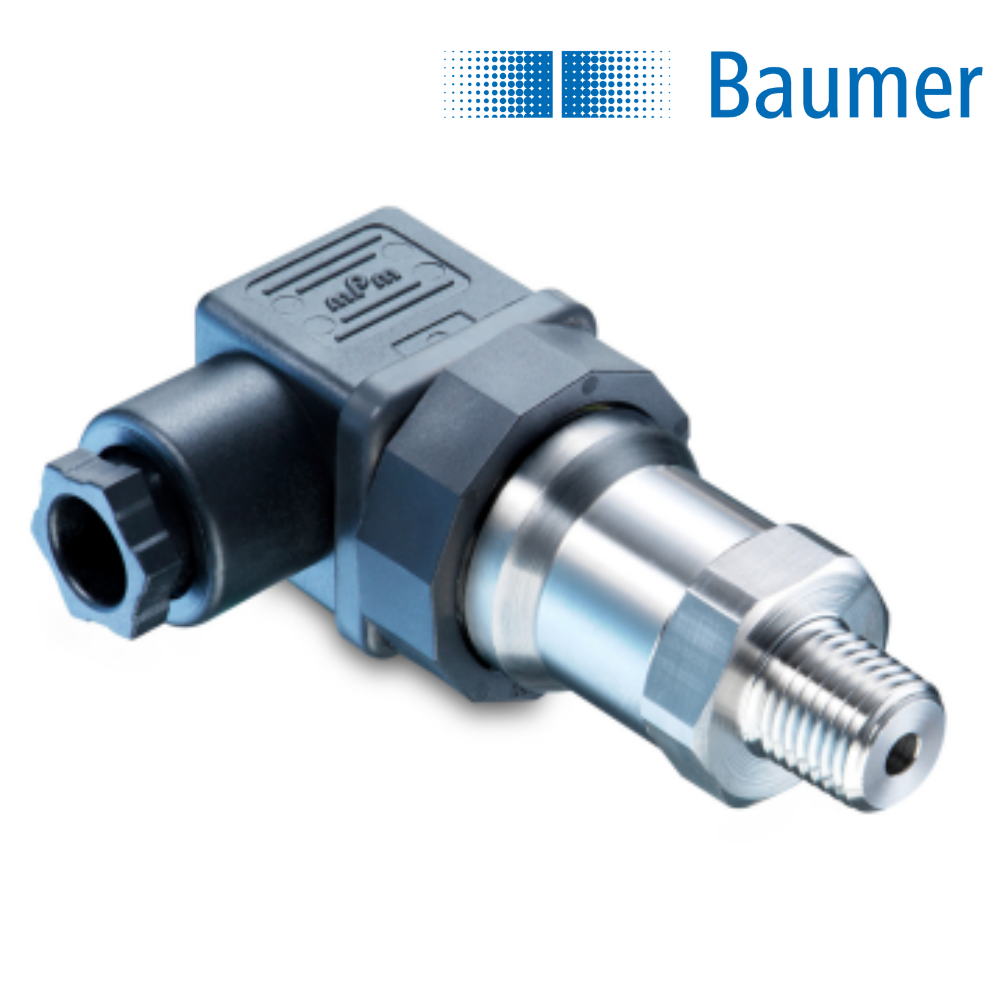

Pressure Transmitter 0…10 bar Analog output 4…20 mA

performance characteristics:

Type: PS510-10V-04-LI2UPN8-H1141

ID: 100001532

Medium Temperature: -30…+80 °C

Application Area: Liquids and gases

Pressure Range:

Pressure Type: Relative pressure

Pressure Range: -1…10 bar / -14.5…145.04 psi / -0.1…1 MPa

Admissible Overpressure: ≤ 70 bar

Burst Pressure: ≥ 140 bar

Response Time: ≤ 3 ms

Electrical Data:

Operating Voltage: 18…33 VDC

Short-Circuit/Reverse Polarity Protection: Yes, cyclic / Yes (voltage supply)

Capacitive Load: 100 nF

Insulation Class: III

Outputs:

Output 1: Switching output or IO-Link mode

Output 2: Analog or switching output

Switching Output:

Communication Protocol: IO-Link

Output Function: NO/NC, PNP/NPN

Accuracy: ± 0.25 % FS BSL

Rated Operational Current: 0.25 A

Switching Frequency: ≤ 300 Hz

Switching Point Distance: ≥ 0.5 %

Switch Point: (Min. + 0.005 × range)…100 % of full scale

Release Point(s): Min. up to (SP - 0.005 × range)

Switching Cycles: ≥ 100 million

Analog Output:

Current Output: 4…20 mA

High Level Signal Current: 20.5 mA

Low Level Signal Current: 3.8 mA

Load Resistance Current Output: ≤ 0.5 kΩ

Voltage Output: 0…10 V

Load Resistance Voltage Output: ≥ 8 kΩ

Accuracy LHR: ± 0.25 % FS BSL

IO-Link:

IO-Link Specification: V 1.1

IO-Link Port Type: Class A

Transmission Physics: Corresponds to 3-wire physics (PHY2)

Frame Type: 2.2

Transmission Rate: COM 2/38.4 kbps

Process Data Width: 16 bit

Measured Value Information: 14 bit

Switchpoint Information: 2 bit

Programming: FDT/DTM

Accuracy: ± 0.25 % FS BSL

Included in the SIDI GSDML: Yes

Programming Options:

Start/end value analog output; switch/release points; PNP/NPN; NO/NC contact; hysteresis/window function; damping; pressure unit; peak pressure memory

Mechanical Data:

Housing Material: Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV

Materials (Contact with Media): Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)

Process Connection: G 1/4'' male thread

Wrench Size Pressure Connection / Coupling Nut: 24

Max. Tightening Torque of Housing Nut: 35 Nm

Electrical Connection: Connector, M12 × 1

Protection Class: IP66, IP67, IP69K

Environmental Conditions:

Ambient Temperature: -40…+80 °C

Storage Temperature: -40…+80 °C

Shock Resistance: 50 g (11 ms) DIN EN 60068-2-27

EMV:

EN 61000‐4‐2 ESD: 4 kV CD / 8 kV AD

EN 61000‐4‐3 HF Radiated: 15 V/m

EN 61000‐4‐4 Burst: 2 kV

EN 61000‐4‐6 HF Cable Bound: 10 V

EN 61000-6-2: 0.5 kV, 42 Ω

EN 61326-2-3

Tests/Approvals:

Approvals: CE, Metrological Certification (RUS), cULus

UL Registration Number: E183243

Reference Conditions Acc. to IEC 61298-1:

Temperature: 15…+25 °C

Atmospheric Pressure: 860…1030 hPa abs.

Humidity: 45…75 % rel.

Auxiliary Power: 24 VDC

Displays/Operating Elements:

Display: 4-digit 12-segment display, rotatable by 180°, red or green

Switching State: 2 × LEDs, Yellow

Unit Display: 5 x LEDs green (bar, psi, kPa, MPa, misc)

Temperature Behaviour:

Temperature Coefficient Range TKs: ± 0.1 % of full scale/10 K

Temperature Coefficient Zero Point TK0: ± 0.1 % of full scale/10 K

MTTF: 100 years acc. to SN 29500 (Ed. 99) 40 °C

Included in Delivery: NBR70 flat seal (USIT ring, nitrile rubber), 1 pc.

Performance Characteristics

Pressure Type: Relative (gauged)

Compensated Temperature Range: -10…55 °C

Long Term Stability: ≤ 0.3 % FSR/a

Max. Measuring Error: ± 2.5 % FSR (Including zero-point and span error, nonlinearity (by terminal base line), hysteresis, and non-repeatability (EN 61298-2))

Max. Measuring Span: 200 bar

Measuring Range: -1…200 bar

Standard Error of Measurement (BFSL): ± 0.5 % FSR (Including non-linearity, hysteresis, and non-repeatability according to BFSL)

Min. Measuring Span: 1.0 bar

Rise Time (10…90%): ≤ 5 ms

Temperature Coefficient: ≤ 0.15 % FSR/10 K (measuring span), ≤ 0.25 % FSR/10 K (zero point)

Process Conditions:

Process Temperature: -40…100 °C

Process Pressure: Refer to section "Operating Conditions"

Process Connection: Refer to section "Dimensional Drawings"

Wetted Parts Material:

Process Connection: AISI 316L (1.4404)

Membrane: Ceramic, 96% AL2O3

Gasket: NBR (optional), EPDM (optional, O-rings conform to 3-A Sanitary Standard 18-03 Class II, EPDM gaskets conform to 3-A Sanitary Standard 18-03 Class I (8% milk fat max.)), FKM (optional, gaskets require a minimum ambient temperature of -20 °C and a minimum medium temperature of -25 °C)

Ambient Conditions:

Operating Temperature Range: -40…85 °C

Storage Temperature Range: -40…85 °C

Degree of Protection (EN 60529): IP65

Bump (EN 60068-2-27): 100 g / 2 ms, 4000 impulses per axis and direction

Shock (EN 60068-2-27): 50 g / 11 ms, 100 g / 6 ms, 3 impulses per axis and direction

Shock and Vibration Tests (EN 61373:1999, 2010): Category 1, Class B

Vibration (Sinusoidal) (EN 60068-2-6): 1.5 mm p-p (10…55 Hz), 10 g (55 Hz…2 kHz), 10 cycles (2.5 h) per axis

Vibration, Broad-band Random (EN 60068-2-64): 0.1 g² / Hz, > 10 gRMS (20 Hz…1 kHz), 30 min. per axis

Output Signal:

Current Output: 4…20 mA, 2-wire

Voltage Output: 0…10 V, 0.5…4.5 V DC r

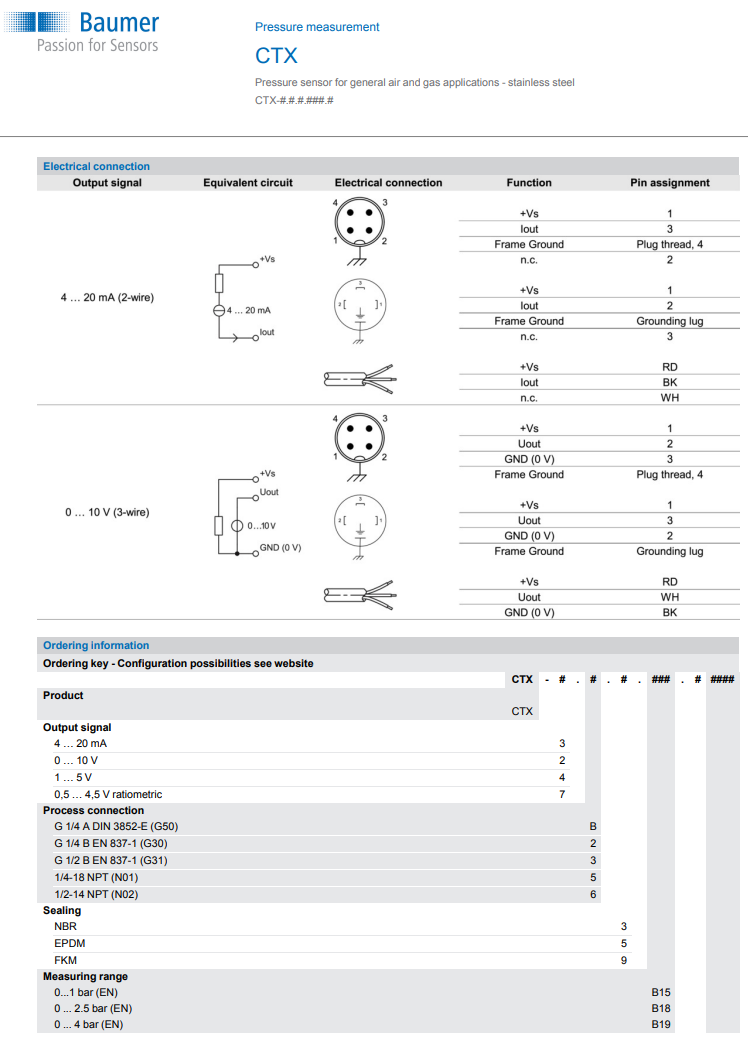

data sheet : https://www.baumer.com/medias/__secure__/Baumer_CTX_EN_20240429_DS.pdf?mediaPK=9160081145886
