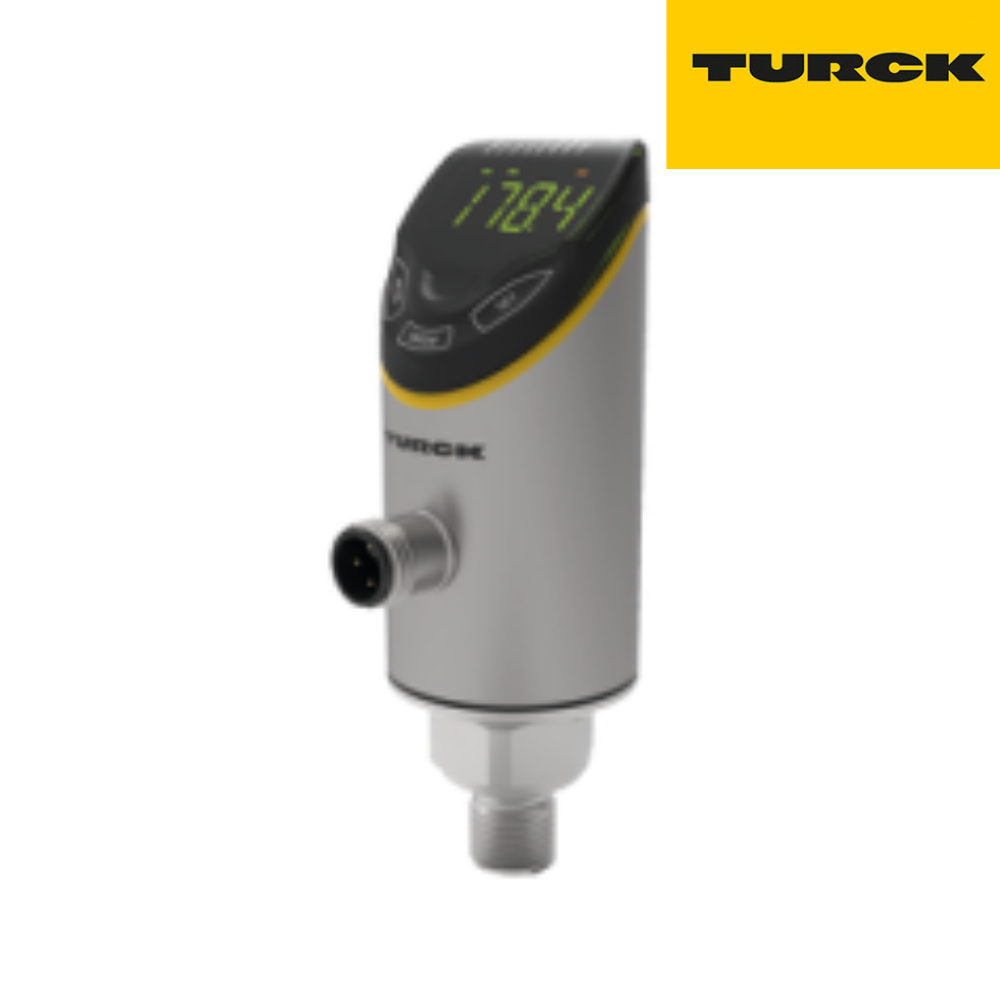

Pressure sensor -1…10 Bar NO/NC contact, PNP/NPN output, 0-10 VDC output M12

Type: PS510-10V-04-LI2UPN8-H1141

ID: 100001532

Medium temperature: -30…+80 °C

Application area: Liquids and gases

Pressure range:

Pressure type: Relative pressure

Pressure range: -1…10 bar / -14.5…145.04 psi / -0.1…1 MPa

Admissible overpressure: ≤ 70 bar

Burst pressure: ≥ 140 bar

Response time: ≤ 3 ms

Electrical data:

Operating voltage: 18…33 VDC

Short-circuit/reverse polarity protection: Yes, cyclic / Yes (voltage supply)

Capacitive load: 100 nF

Insulation class: III

Outputs:

Output 1: Switching output or IO-Link mode

Output 2: Analog or switching output

Switching output:

Communication protocol: IO-Link

Output function: NO/NC, PNP/NPN

Accuracy: ± 0.25 % FS BSL

Rated operational current: 0.25 A

Switching frequency: ≤ 300 Hz

Switching point distance: ≥ 0.5 %

Switch point: (Min. + 0.005 × range)…100 % of full scale

Release point(s): Min. up to (SP - 0.005 × range)

Switching cycles: ≥ 100 million

Analog output:

Current output: 4…20 mA

High level signal current: 20.5 mA

Low level signal current: 3.8 mA

Load resistance current output: ≤ 0.5 kΩ

Voltage output: 0…10 V

Load resistance voltage output: ≥ 8 kΩ

Accuracy LHR: ± 0.25 % FS BSL

IO-Link:

IO-Link specification: V 1.1

IO-Link port type: Class A

Transmission physics: Corresponds to 3-wire physics (PHY2)

Frame type: 2.2

Transmission rate: COM 2/38.4 kbps

Process data width: 16 bit

Measured value information: 14 bit

Switchpoint information: 2 bit

Programming: FDT/DTM

Accuracy: ± 0.25 % FS BSL

Included in the SIDI GSDML: Yes

Programming:

Programming options: Start/end value analog output; switch/release points; PNP/NPN; NO/NC contact; hysteresis/window function; damping; pressure unit; peak pressure memory

Mechanical data:

Housing material: Stainless-steel/Plastic, 1.4404 (AISI 316L)/Grilamid TR90 UV

Materials (contact with media): Stainless steel 1.4404 (AISI 316L)/1.4542 (AISI 630)

Process connection: G 1/4'' male thread

Wrench size pressure connection / coupling nut: 24

Max. tightening torque of housing nut: 35 Nm

Electrical connection: Connector, M12 × 1

Protection class: IP66, IP67, IP69K

Environmental conditions:

Ambient temperature: -40…+80 °C

Storage temperature: -40…+80 °C

Shock resistance: 50 g (11 ms) DIN EN 60068-2-27

EMV:

EN 61000‐4‐2 ESD: 4 kV CD / 8 kV AD

EN 61000‐4‐3 HF radiated: 15 V/m

EN 61000‐4‐4 Burst: 2 kV

EN 61000‐4‐6 HF cable bound: 10 V

EN 61000-6-2: 0.5 kV, 42 Ω

EN 61326-2-3

Tests/approvals:

Approvals: CE, Metrological certification (RUS), cULus

UL registration number: E183243

Reference conditions acc. to IEC 61298-1:

Temperature: 15…+25 °C

Atmospheric pressure: 860…1030 hPa abs.

Humidity: 45…75 % rel.

Auxiliary power: 24 VDC

Displays/Operating elements:

Display: 4-digit 12-segment display, rotatable by 180°, red or green

Switching state: 2 × LEDs, Yellow

Unit display: 5 x LEDs green (bar, psi, kPa, MPa, misc)

Temperature behaviour:

Temperature coefficient range TKs: ± 0.1 % of full scale/10 K

Temperature coefficient zero point TK0: ± 0.1 % of full scale/10 K

MTTF: 100 years acc. to SN 29500 (Ed. 99) 40 °C

Included in delivery: NBR70 flat seal (USIT ring, nitrile rubber), 1 pc.

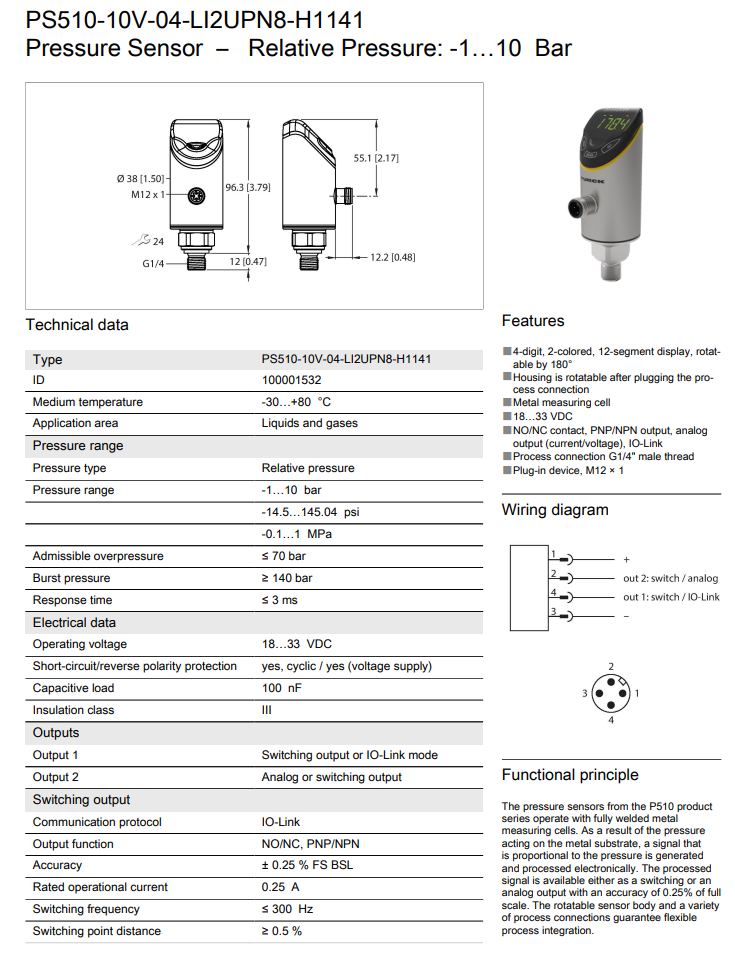

data sheet: https://www.turck.de/datasheet/_en/edb_100001532_gbr_en.pdf
