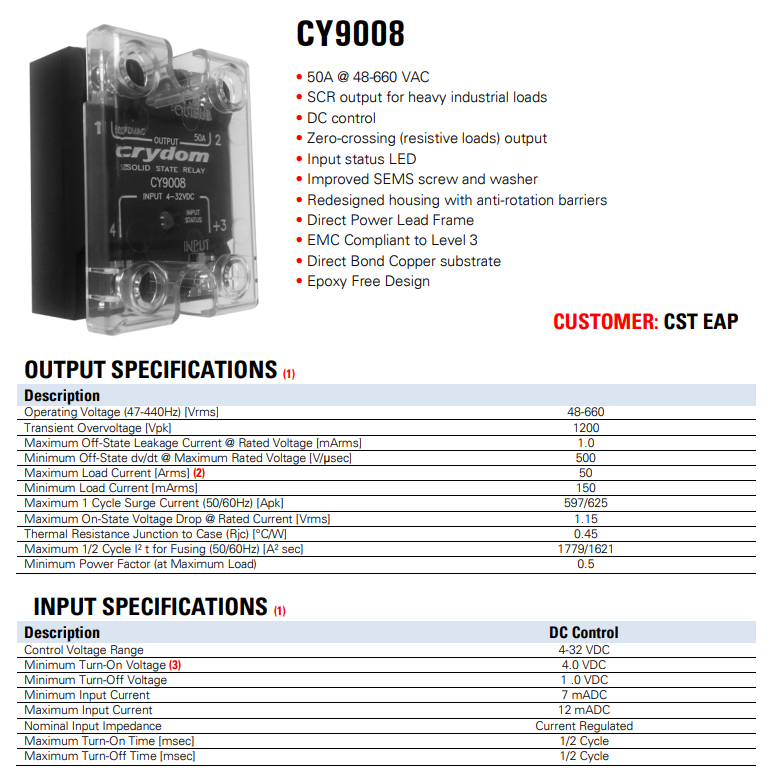

(CRYDOM)-CY9008-SOLID STATE RELAY

OUTPUT SPECIFICATIONS (1)
Description
Operating Voltage (47-440Hz) [Vrms]: 48-660
Transient Overvoltage [Vpk]: 1200
Maximum Off-State Leakage Current @ Rated Voltage [mArms]: 1.0
Minimum Off-State dv/dt @ Maximum Rated Voltage [V/ sec]: 500
Maximum Load Current [Arms] (2): 50
Minimum Load Current [mArms]: 150
Maximum 1 Cycle Surge Current (50/60Hz) [Apk]: 597/625
Maximum On-State Voltage Drop @ Rated Current [Vrms]: 1.15
Thermal Resistance Junction to Case (Rjc) [°C/W]: 0.45
Maximum 1/2 Cycle I² t for Fusing (50/60Hz) [A² sec]: 1779/1621
Minimum Power Factor (at Maximum Load): 0.5

INPUT SPECIFICATIONS (1)
Description: DC Control
Control Voltage Range: 4-32 VDC
Minimum Turn-On Voltage (3): 4.0 VDC
Minimum Turn-Off Voltage: 1.0 VDC
Minimum Input Current: 7 mADC
Maximum Input Current: 12 mADC
Nominal Input Impedance: Current Regulated
Maximum Turn-On Time [msec]: 1/2 Cycle
Maximum Turn-Off Time [msec]: 1/2 Cycle

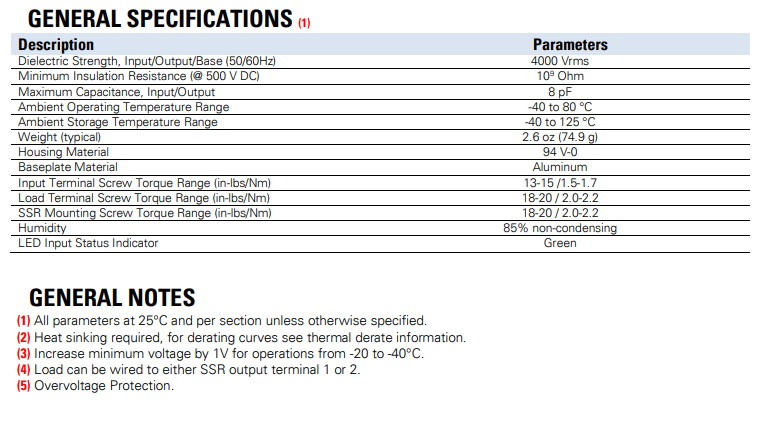

GENERAL SPECIFICATIONS (1)
Description: Parameters
Dielectric Strength, Input/Output/Base (50/60Hz): 4000 Vrms
Minimum Insulation Resistance (@ 500 V DC): 10⁹ Ohm
Maximum Capacitance, Input/Output: 8 pF
Ambient Operating Temperature Range: -40 to 80 °C
Ambient Storage Temperature Range: -40 to 125 °C
Weight (typical): 2.6 oz (74.9 g)
Housing Material: 94 V-0
Baseplate Material: Aluminum
Input Terminal Screw Torque Range (in-lbs/Nm): 13-15 / 1.5-1.7
Load Terminal Screw Torque Range (in-lbs/Nm): 18-20 / 2.0-2.2
SSR Mounting Screw Torque Range (in-lbs/Nm): 18-20 / 2.0-2.2
Humidity: 85% non-condensing
LED Input Status Indicator: Green

GENERAL NOTES
(1) All parameters at 25°C and per section unless otherwise specified.

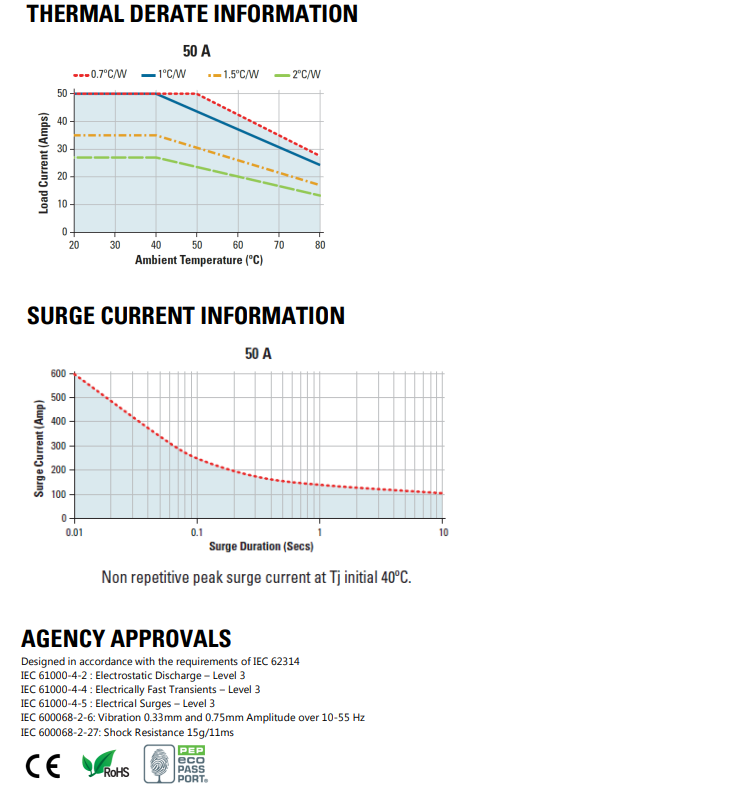

(2) Heat sinking required, for derating curves see thermal derate information.
(3) Increase minimum voltage by 1V for operations from -20 to -40°C.

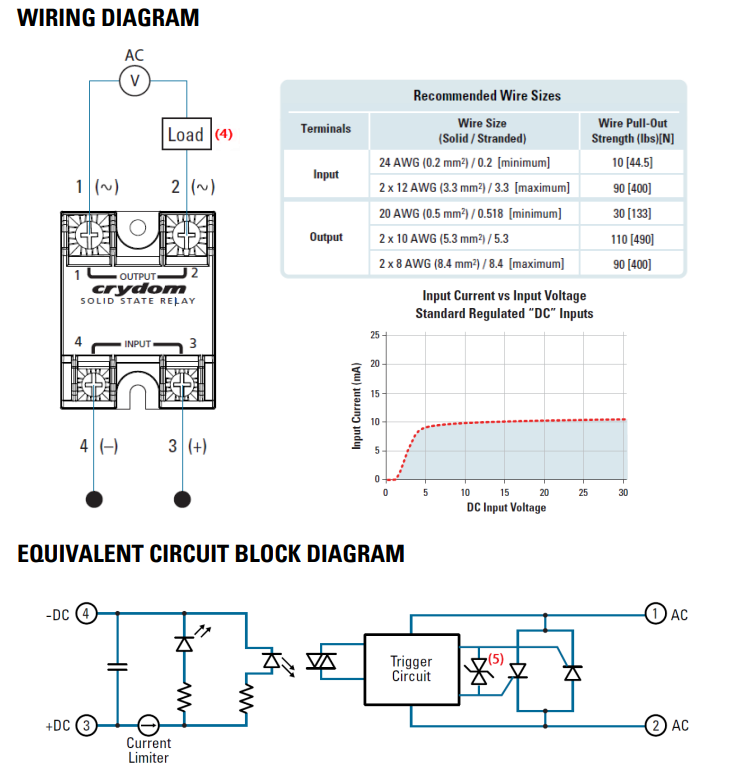

(4) Load can be wired to either SSR output terminal 1 or 2.
(5) Overvoltage Protection.
data sheet: https://drive.google.com/file/d/1OD-9fEiRsQUeQj6RvNvKr4N9AZciy-lk/view?usp=sharing
