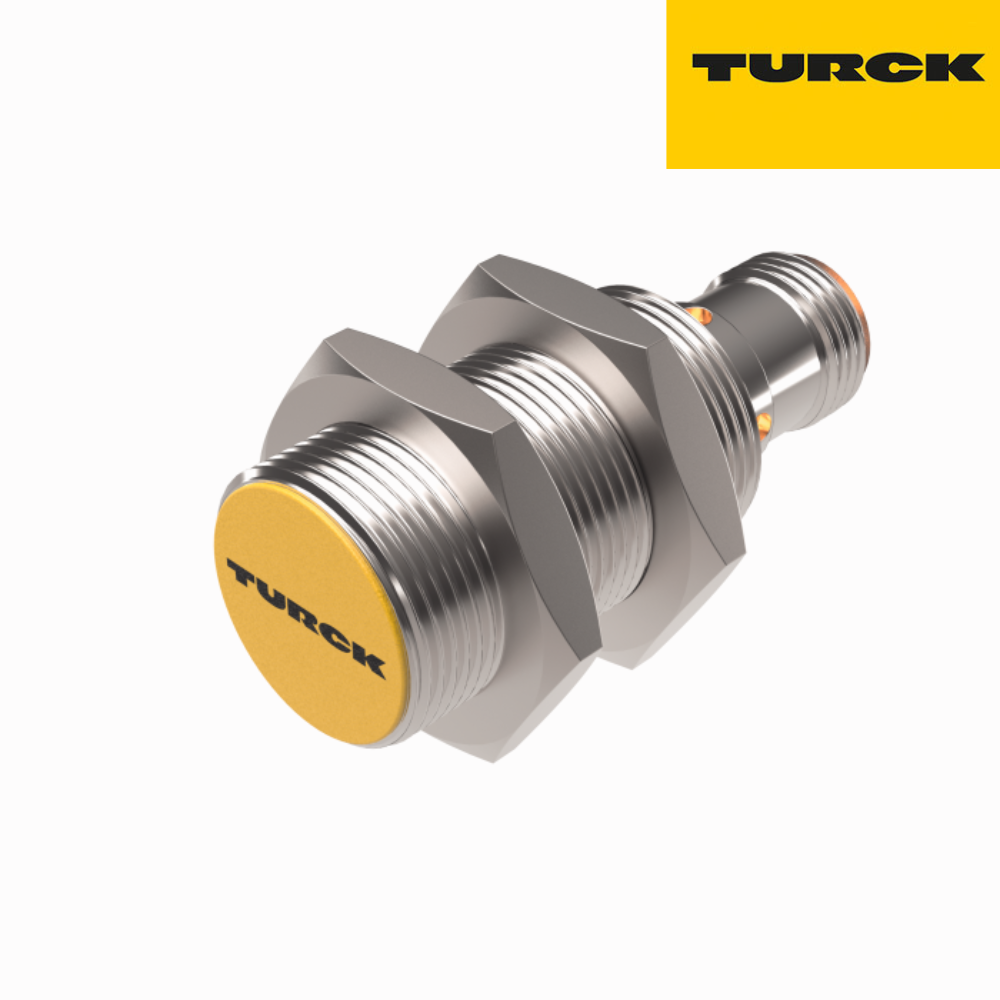

46150-Inductive Proximity M18 SN: 8 mm. 3-Wire DC PNP Output, 10 to 30 VDC, General data: Rated switching distance: 8 mm, Mounting conditions: Flush, Secured operating distance: ≤ (0.81 × Sn) mm, Correction factors: St37 = 1; Al = 0.3; stainless steel = 0.7; Ms = 0.4, Repeat accuracy: ≤ 2 % of full scale, Temperature drift: ≤ ±10 %, Hysteresis: 3…15 %, Electrical data: Operating voltage: 10…30 VDC, Residual ripple: ≤ 10 % Uss, DC rated operational current: ≤ 200 mA, No-load current: 15 mA, Residual current: ≤ 0.1 mA, Isolation test voltage: ≤ 0.5 kV, Short-circuit protection: yes / Cyclic, Voltage drop at Ie: ≤ 1.8 V, Wire breakage/Reverse polarity protection: yes / Complete, Output function: 3-wire, NO contact, PNP, Switching frequency: 0.5 kHz, Design: Threaded barrel, M18 x 1, Dimensions: 52 mm, Housing material: Metal, CuZn, Chrome-plated, Active area material: Plastic, PA12-GF30, Max. tightening torque of housing nut: 25 Nm, Connector, M12 × 1, Ambient temperature: -25…+70 °C, Vibration resistance: 55 Hz (1 mm), Shock resistance: 30 g (11 ms), Protection class: IP67, MTTF: 2283 years acc. to SN 29500 (Ed. 99) 40°C, Switching state: LED, Yellow.
